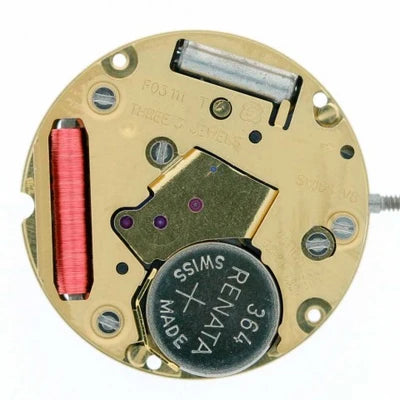

F03-115 D6 ETA Watch Movement

DESCRIPTION

ETA F03.111 Quartz Watch Movement – Date at 6 O'Clock

The ETA F03.111 is a Swiss-made, 7¾ ligne quartz watch movement featuring a three-hand configuration with central hour, minute, and seconds hands, along with a date display at 6 o'clock. It measures 17.20 mm in diameter, features no jewels, operates on a 364 battery, and uses hand sizes of 120/70/20. The movement has an overall height of 4.00 mm from the bottom of the movement to the top of the sweep seconds pinion and uses stem reference S401-1520. Its compact construction makes it suitable for various wristwatches and serves as a replacement for select movements from ETA, Bulova, Certina, Ebel, Longines, Omega, Rado, Tissot, and other manufacturers.

Technical Specifications

• Brand: ETA
• Caliber: F03.111
• Movement Type: Quartz
• Country of Origin: Switzerland
• Size: 7¾ Ligne
• Diameter: 17.20 mm
• Overall Height (to Sweep Seconds Pinion): 4.00 mm
• Jewels: 0
• Functions: Hours, Minutes, Seconds, Date
• Hands: 3 (Hour, Minute, Second)
• Date Position: 6 O'Clock
• Hand Sizes: 120/70/20
• Battery: 364
• Stem Reference: S401-1520

Movement Interchange References

• Bulova: 2690, 2691, 2692, 2852, 6012.17, 6016, 6512.17
• Certina: 111, 113, 182, 188, 191, 250, 252
• Ebel: 75, 76
• ETA (ESA): 556.111, 556.112, 556.115, 956.112, 956.114, F03.11A
• France Ebauches (FE): 2731
• Longines: 111.4, 250.2
• Mido: 111
• Omega: 1380, 1382
• PUW: 920, 921
• Rado: 110, 111
• Tissot: 3211, 3212, 3219, 3312, 3520, 3522, 3528

Note: Movement interchange references are provided for identification purposes. Verify dimensions, hand heights, dial feet, and date positioning before ordering to ensure compatibility.
